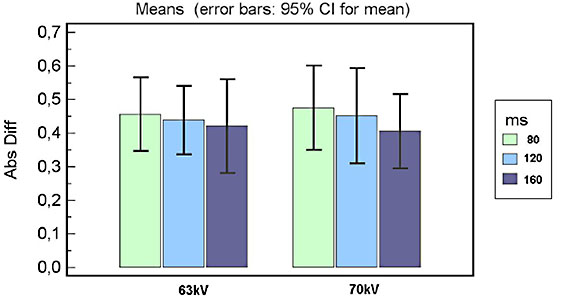

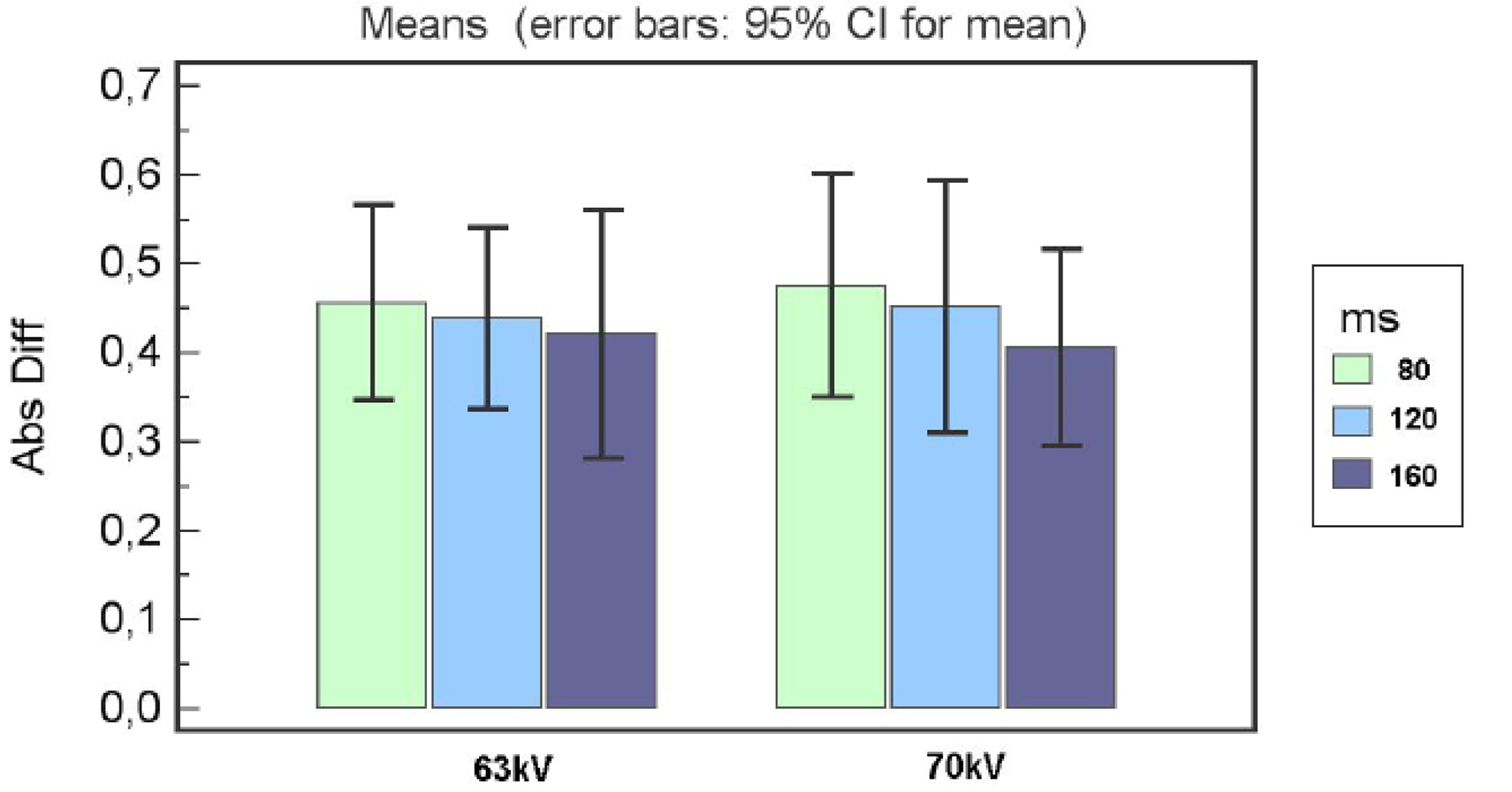

Figure 3.
Bar chart for the absolute differences (abs diff in mm, y-axis) of the radiographic measuritalicents from the Standard.
The means and error bars at a 95% confidence interval (CI) are shown for the different exposure times (ms), clustered by the two kV settings (x-axis).
